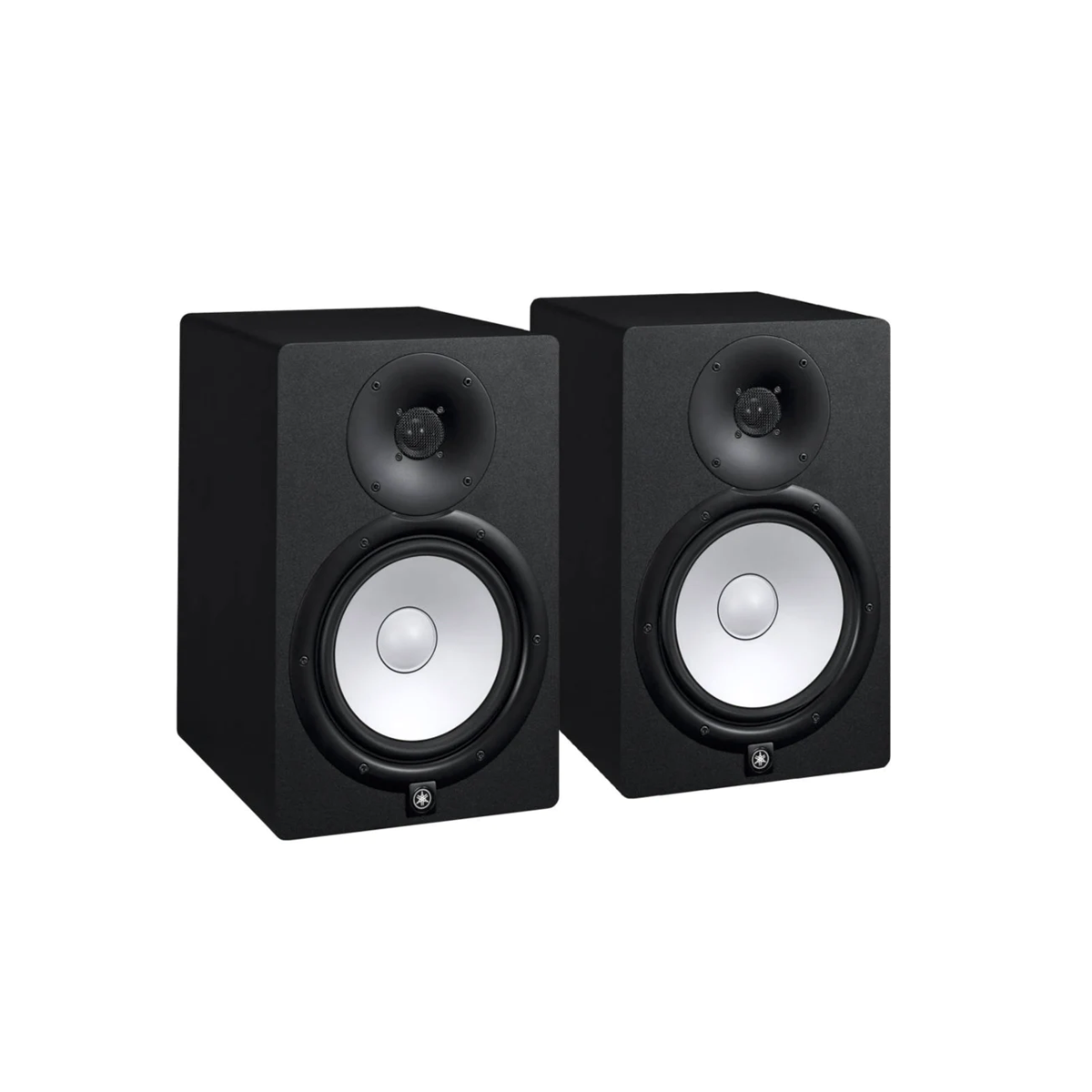

Yamaha HS8 8'' Powered Studio Monitors (Factory Matched Pair)
Yamaha HS8 8'' Powered Studio Monitors (Factory Matched Pair)
Out of stock | Available to order
To order this product, call (905) 624 9409 for the expected delivery date.
SKU:
Regular price
$1,149.99 CAD
Regular price
Sale price
$1,149.99 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
2-Way Bass-Reflex Bi-Amplified Nearfield Studio Monitors with 8" Cone Woofer and 1" Dome Tweeter
Newly Developed Transducers
The HS Series features newly developed transducers that achieve astonishingly smooth response over a wide range of bandwidth. These transducers utilize an advanced magnetic field design that regulates the flow of magnetic response to provide seamless, natural sonic transitions. Each component's materials and design were carefully re-examined, then optimized, to drastically improve the accuracy of signal reproduction throughout the audio spectrum.
High Performance Amp Unit
HS Series speakers employ an amplifier unit perfectly matched to the transducers utilized in each model of the series. Featuring a bi-amp design with a separate dedicated amp for both the woofer and the tweeter, this amplifier unit ensures that each HS Series speaker consistently delivers high-resolution sound with exceptionally flat response across the sound spectrum.
Low Resonance Enclosure Design
HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a very dense and resilient MDF with a damped acoustic response that is perfectly suited for reference monitors. Drawing from Yamaha's over 100 years of piano design experience, HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design this construction firmly anchors the corners of the enclosure to dramatically improve durability and eliminate unwanted resonance that can influence overall sound.
Controls and Connectivity
HS Series full-range models feature two response controls with detailed settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a wide range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks. With the HS8S subwoofer, HIGH CUT control sets the cutoff frequency of subwoofer output high-frequency attenuation from 80Hz to 120Hz, while PHASE switch adjusts the phase of the subwoofer output. The LOW CUT switch and LOW CUT controls enables attenuation of low frequencies for output between 80Hz and 120Hz. The HS8S subwoofer is equipped with XLR and TRS phone jack inputs and for outputs XLR for L and R and EXT SUB out.
Features
• 38Hz - 30kHz (-10dB), 47Hz - 24kHz (-3dB) frequency response
• 75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
• ROOM CONTROL and HIGH TRIM response controls
• XLR and TRS phone jack inputs accept balanced or unbalanced signals
• Sold as matched pair
Specifications
Speaker type: 2-way bi-amp powered studio monitor
Frequency response (-10dB): 38Hz - 30kHz
Frequency response (-3dB): 47Hz - 24kHz
Components:
• LF: 8" cone
• HF: 1" dome
Crossover: 2kHz
Output power: 120W (LF:75W, HF:45W)
Input sensitivity: -10 dBu/10k ohms
I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
Indicators: Power ON (White LED)
Power consumption: 60W
Shape: Bass-reflex type
Cabinet material: MDF
Others: LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
Dimensions: 39 x 33.4 x 25 cm (15.4" x 13.2" x 9.8")
Weight: 10.2kg (22.5 lb)
Newly Developed Transducers
The HS Series features newly developed transducers that achieve astonishingly smooth response over a wide range of bandwidth. These transducers utilize an advanced magnetic field design that regulates the flow of magnetic response to provide seamless, natural sonic transitions. Each component's materials and design were carefully re-examined, then optimized, to drastically improve the accuracy of signal reproduction throughout the audio spectrum.
High Performance Amp Unit
HS Series speakers employ an amplifier unit perfectly matched to the transducers utilized in each model of the series. Featuring a bi-amp design with a separate dedicated amp for both the woofer and the tweeter, this amplifier unit ensures that each HS Series speaker consistently delivers high-resolution sound with exceptionally flat response across the sound spectrum.
Low Resonance Enclosure Design
HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a very dense and resilient MDF with a damped acoustic response that is perfectly suited for reference monitors. Drawing from Yamaha's over 100 years of piano design experience, HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design this construction firmly anchors the corners of the enclosure to dramatically improve durability and eliminate unwanted resonance that can influence overall sound.
Controls and Connectivity
HS Series full-range models feature two response controls with detailed settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a wide range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks. With the HS8S subwoofer, HIGH CUT control sets the cutoff frequency of subwoofer output high-frequency attenuation from 80Hz to 120Hz, while PHASE switch adjusts the phase of the subwoofer output. The LOW CUT switch and LOW CUT controls enables attenuation of low frequencies for output between 80Hz and 120Hz. The HS8S subwoofer is equipped with XLR and TRS phone jack inputs and for outputs XLR for L and R and EXT SUB out.
Features
• 38Hz - 30kHz (-10dB), 47Hz - 24kHz (-3dB) frequency response
• 75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
• ROOM CONTROL and HIGH TRIM response controls
• XLR and TRS phone jack inputs accept balanced or unbalanced signals
• Sold as matched pair
Specifications
Speaker type: 2-way bi-amp powered studio monitor
Frequency response (-10dB): 38Hz - 30kHz
Frequency response (-3dB): 47Hz - 24kHz
Components:
• LF: 8" cone
• HF: 1" dome
Crossover: 2kHz
Output power: 120W (LF:75W, HF:45W)
Input sensitivity: -10 dBu/10k ohms
I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
Indicators: Power ON (White LED)
Power consumption: 60W
Shape: Bass-reflex type
Cabinet material: MDF
Others: LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
Dimensions: 39 x 33.4 x 25 cm (15.4" x 13.2" x 9.8")
Weight: 10.2kg (22.5 lb)
